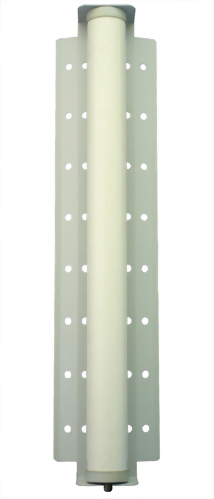

Directional Grid Antenna for 5.1 ~ 5.9 GHz
Model :
ACO-51826
| Electrical Specification | |
| Frequency Range: | 5.1 ~ 5.9 GHz |
| Part Number | ACO-51826 |
| Polarizatin | Linear |

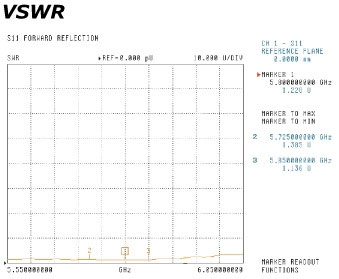

| V.S.W.R. | 1 : 1.5 Max |
| Impedance | 50 OHMS ± 5Ω |
| Gain | 26 dBi |
| Power handling | 20W Max |
| Front to back ratio | 30dB |
| HPBW / horizontal | 8° |
| HPBW / vertical | 5° |
| Mechanical Specification | |
| Connector Tyep | N Type Female |
| Length | 610mm |
| Weight | 2.87kg |
| Radome color | White |
| Radome materal | ABS |
