APM Co., ltd.
Directional Sector Antenna for 824~896MHz
Model :
ASC-0809
|
Electrical Specification
|
|
Frequency
|
824~896Mhz
|
|
Part Number
|
1SC-0809
|
|
Polarizatin
|
Linear
|
|
V.S.W.R.
|
1 : 1.3 Max
|
|
Impedance
|
50 OHMS ± 5Ω
|
|
Gain
|
9 dBi
|
|
Power handling
|
15W Max
|
|
Front to back ratio
|
30dB
|
|
HPBW / horizontal
|
120°
|
|
HPBW / vertical
|
10°
|
|

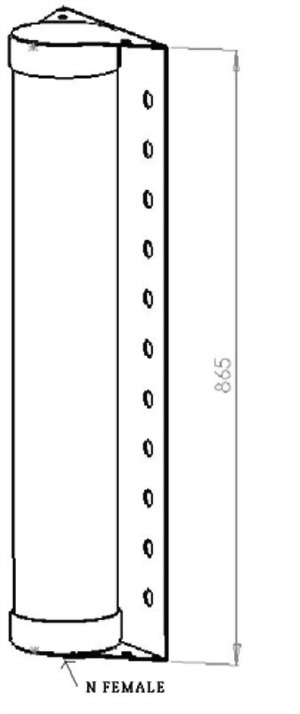

Mechanical Specification
|
|
Connector Tyep
|
N Type Female
|
|
Length
|
865 x 130 x 65mm
|
|
Weight
|
3.4Kg
|
|
Radome color
|
Gray-white
|
|
Radome materal
|
ABS
|
