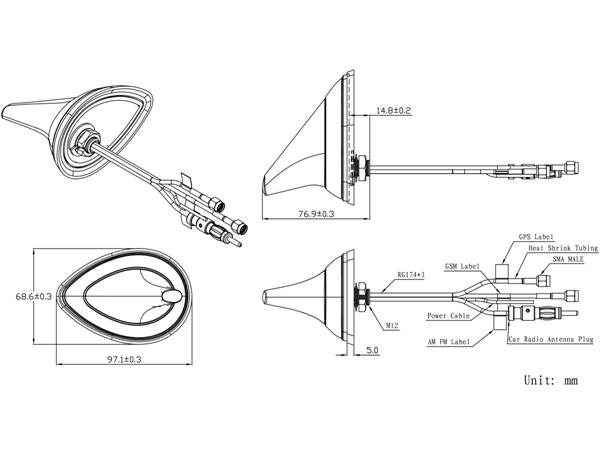

GPS+GSM+FM/AM Combination Antenna
|
Item |
Specifications |
||
|
GPS Antenna |
Dielectric Antenna |
Center Frequency |
1575.42±1MHz |
|
Band Width |
CF±5MHz |
||
|
Polarization |
RHCP |
||
|
Gain |
2dBic（Zenith） |
||
|
V.S.W.R |
＜1.5 |
||
|
Impendance |
50Ω |
||
|
Axial Ratio |
3dB（max） |
||
|
LNA |
Gain |
28±2dB |
|
|
Noise Figure |
＜1.5 |
||
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
||
|
V.S.W.R |
＜2.0 |
||
|
Supply Voltage |
2.2~5V DC |
||
|
Current Consumption |
5~15mA |
||
|
GSM Antenna |
|
824~960MHz/1710~2170MHz |
|
|
V.S.W.R |
＜2.5 |
||
|
Polarization |
Linear |
||
|
Gain |
2dBi |
||
|
Impendance |
50Ω |
||
|
FM/AM Antenna |
|
520~1629KHz/76~108MHz |
|
|
V.S.W.R |
＜2.5 |
||
|
Polarization |
Linear |
||
|
Gain |
20/12dBi |
||
|
Impendance |
50Ω |
||
|
Supply Voltage |
12V DC |
||
|
Environmental |
Operating Temperature |
|
|
|
Relative Humidity |
Up to 95% |
||
|
Ingress Protection |
IP65~IP67 (exclude cable outlet) |
||
|
Vibration |
10 to 55Hz with |
||
|
Environmentally Friendly |
ROHS Compliant |
||
