GSM Directional Panel Antenna

Model : APG-0809

Electrical Specification
Frequency 900~930 MHz
Part Number APG-0809
Polarizatin Linear

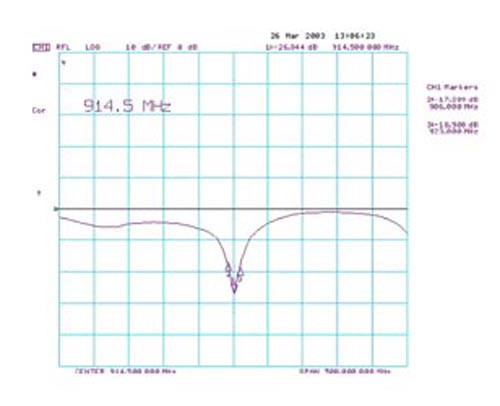

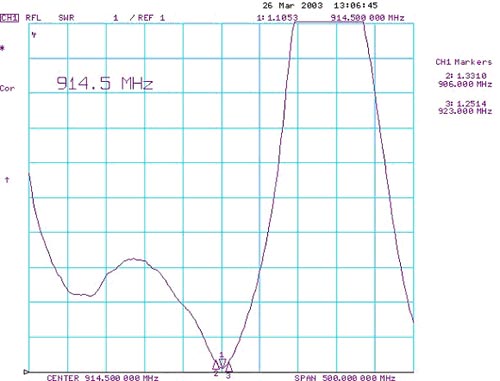

V.S.W.R. 1 : 1.5 Max
Impedance 50 OHMS ± 5Ω
Gain 8 dBi
Power handling 30W Max
Front to back ratio 20dB
HPBW / horizontal 90°
HPBW / vertical 70°
Mechanical Specification

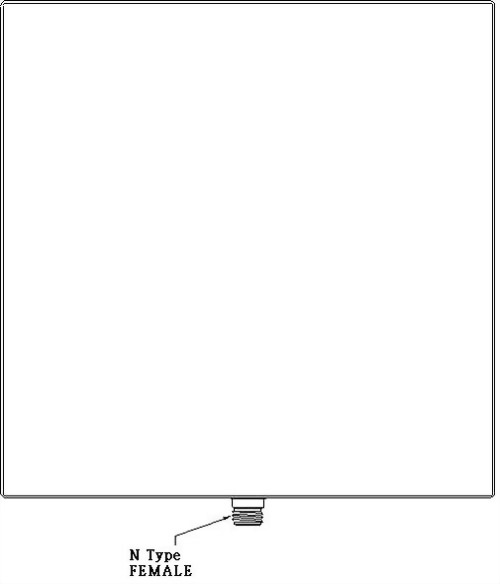

Connector Tyep N Type Female
Length 263*263*30mm
Weight 1.68Kg
Radome color White
Radome materal PC+ABS
