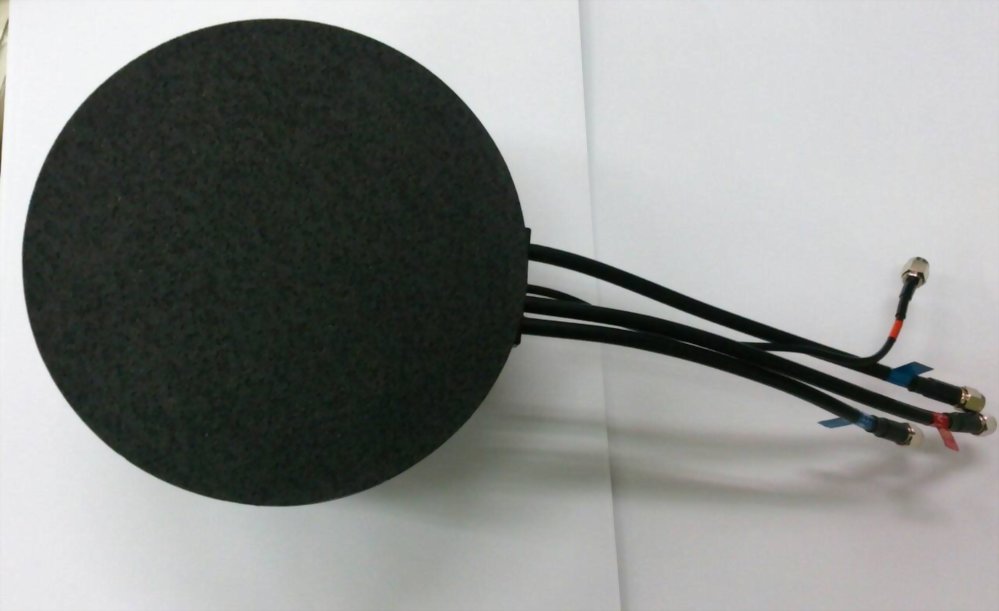

GPS+SGM+4G LTE+WIFI 2.4~6GHz antenna

Model : AGP-GGLW-01

 Electrical Specifications

Frequency Ranges

LTE 698~960/1710~2170Mhz / Wifi 2400~2500/4300~6000Mhz / GPS 1575.42Mhz

Gain

27 dB-Max.

Gain

2.5 dBi / Cellular

Polarization

Vertical

VSWR

<1.5 : 1

Impedance

50 Ohm

Noise Figure

1.5dB

Voltage Supply

3… 5V DC

Consumption

Max. 20ma

Connector

SMA male

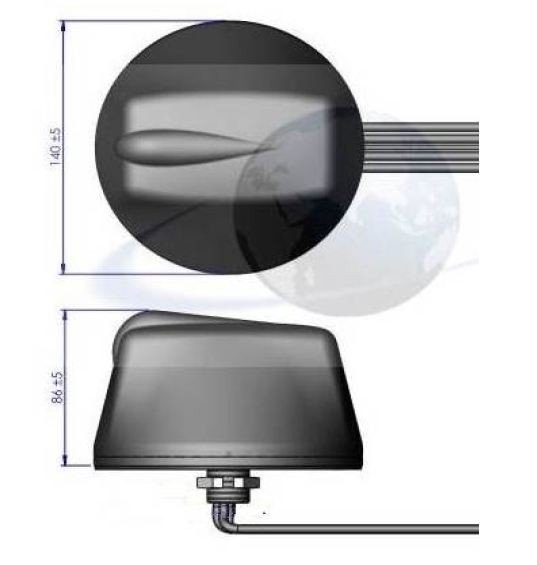

Environmental & Mechanical Specifications

Temperature

-30 to +80

Mounting

Screws or Magnet

Weight

500g

Radome Material

ABS Polymer

Cable Length

LTE / RG-58U 15cm*1,  WIFI / RG-58U 15cm*1, GPS / RG-174U 15cm*1

Housing

Black

IP65
