GSM Directional Panel Antenna

Model : APG-1809

Electrical Specification
Frequency 1800±30 MHz
Part Number APG-1809
Polarizatin Linear

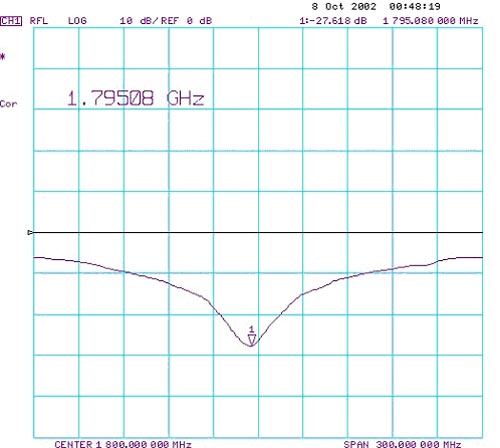

V.S.W.R. 1 : 1.5 Max
Impedance 50 OHMS ± 5Ω
Gain 9 dBi
Power handling 30W Max
Front to back ratio 15dB

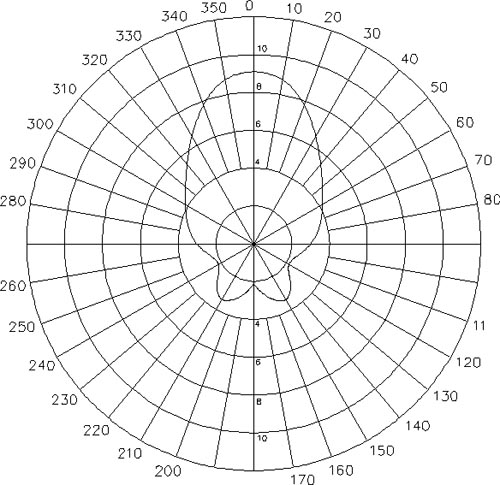

HPBW / horizontal 75°
HPBW / vertical 75°
Mechanical Specification
Connector Tyep N Type Female
Length 107*90*30mm
Weight 280g
Radome color White
Radome materal PVC
