GSM Antenna

Model : AGP-0921SM


Electrical Characteristics

Frequency

824 ~ 960 MHz

1710 ~ 2170 MHz

S.W.R.

<= 6.0 @ 824 ~ 960 MHz

<= 4.0 @ 1710 ~ 2170 MHz

Tested at 290mm Square Ground Plane

Antenna Average Gain

-10 ~ - 6dBi @ 824 ~ 960 MHz

-8 ~ + 1dBi @ 1710 ~ 2170 MHz

Tested at 290mm Square Ground Plane

Polarization

Linear

Impedance

50Ohm

Material & Mechanical Characteristics

Material of Radiator

Cu

Material of Plastic

Body: TPE

Hinge: PA+ABS

Holder: PA+ABS

Cable Type

RG-178

Connector Type

SMA Male

Connector Pull Test

>= 3 Kg

Connector Torque Test

100 ~ 300 g.cm

Environmental

Operation Temperature

- 40 °C ~ + 65 °C

Storage Temperature

- 40 °C ~ + 80 °C

Antenna - Radiation Pattern Test Data

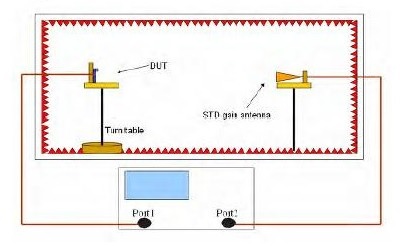

Testing Equipment Specification:

Antenna Anechoic Chamber Dimension: 8 x 4 x 4 m

Quite Zone: 600mm @1 GHz

Isolation: >100dB @ 1 MHz ~ 10 GHz

Testing Equipment: Agilent 5071B

Received Antenna: 0.7 ~ 6.0 GHz for Gain Calibration Double Ridged Horn Antenna
