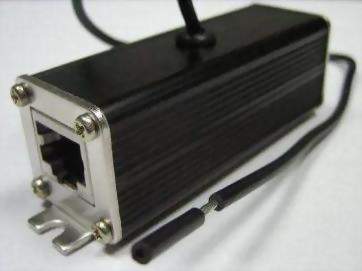

Network Lightning / SurgeProtector PoE Compatible

Model : ASP-POE1G-A

1. Nominal voltage operating DC voltage: 56V

2. Max. continuous operating DC voltage: 58V

3. DC breakdown voltage: 75V

4. Max. continuous DC voltage pair-pair (PoE): 58V

5. Nominal current: 2.5A(Each pair of lines)

6. Nominal discharge current line-line: 17A (8/20μs)

7. Nominal discharge current line-FG: 100A (10/1000μs,300times with 3mins interval)

8. Nominal discharge current line-FG: 10KA (8/20μs,10 times with 3mins interval)

9. Voltage protection level line- FG Breakdown Voltage: 64V ~ 650V (for rising voltage 100V/s and 1000V/us)

10. Voltage protection level line- line Breakdown Voltage: 24V ~ 650V (for rising voltage 100V/s and 1000V/us )

11. Voltage protection level line-line for POE In Maximum Breakdown Voltage : 6V ~ 18.3V @IPP = 17A(8/20uS)

12. Capacitance line-line ≦3 PF

13. Capacitance line-FG ≦ 3 PF

14. Capacitance line-FG ≦ 150 PF@(3-FG) , (4-FG)

15. Operating temperature range: -40°C to +90°C

16. Connection (input / output): RJ45 socket

17. Pinning: 1 / 2, 3 / 6, 4 / 5, 7 / 8

18. Data Rate: Ethernet 10Gbps, PoE 5Gbps @ CAT6A 90m (pin to pin)

19. Ground Lug Wire: 14AWG 350mm ± 5mm

20. Weight: 105 ± 5g

21. Dimensions: 120*25.4*25.4(include bracket)

22. Each pair of lines Over-Current Protection: (1,2/3,6) & (4,5/7,8)

23. Over-Current Protection Turn-off point: 2700 mA ~5400Ma


․Shielded RJ45 jack and metal housing for EMI noise suppression

․CAT5e/CAT6/CAT6a compatible

․10 Gigabit Ethernet available

․Cast aluminum construction

․Integrated mounting brackets

․DIN rail mount available (Option Kit) + 802.3af/at/bt/POH compliant

․AC/DC, DC/DC PoE available

․UL 497B approved (option)
