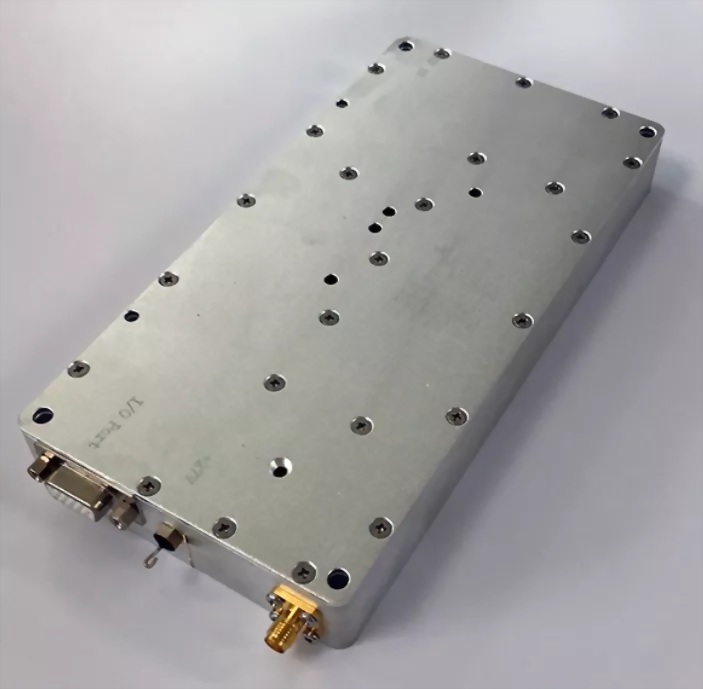

RF Power Amplifier Module
Output Power: 100W
The AAM-3336-100W is designed for general purpose. Operating frequency range is from 3300~3600MHz,Customize 300 MHz bandwidth.Gallium Nitride on GaN Technology is used and attached on a copper sub carrier.Improved thermal handling by patented technology.
Mechanical Specifications
• Package Type: Metal module
• Cooling Method: Bottom-mounted heat sink
• Connector Type: N or customizable RF connector
• Cooling Requirement: Forced air cooling or conductive heat sink
• Mounting Method: Screw-fixed installation
Performance Parameters
PARAMETER
UNIT
MIN
TYP
MAX
SYMBOL
Operating
Frequency
MHz
3300
-
3600
FO
Operating
Bandwidth
MHz
-
300
-
BW
Peak
Output Power @CW Signal
W
-
100
-
PSAT
Input
Power
dBm
+4
+6
+8
PIN
Maximum
Input Power @Without Damage
dBm
-
-
PIN, MAX
Power Gain
@Input
Power 0dBm
dB
-
44±1
-
GP
Gain
Flatness
@Input
Power 0dBm
dB
-
-
± 1
∆GP
Efficiency
%
50
52
55
EFF
Harmonics
1 to N
@Output
Power100W
dBc
12
13
15
HN
Spurious
Level
dBc
60
-
-
Spur
Input VSWR
dB
-
-
-
VSWR
Output
VSWR
dB
-
-
2:1
VSWR
Operating
Voltage
V
24
32
36
VDC
Current
Consumption @Output Power100W
A
-
7.0
-
IDC
Environmental Specifications
PARAMETER
UNIT
RATING
SYMBOL
Operating
Case Temperature
°C
-20 ~ 85
TC
Storage
Temperature
°C
-40 ~ 105
TSTG
Relative Humidity(Non-condensing)
RH
95
%
Operating Voltages
PARAMETER
UNIT
NOMINAL VOLTAGE
VOLTAGE ACCURACY
SYMBOL
Operating
Voltage
V
24-32
± 2%
VDC
HPA Enable
Voltage
V
5-32
VDC
Current
Monitor Voltage
V
-
Temp
Monitor Voltage
V
-
Mechanical Specifications
PARAMETER
UNIT
TYP
Mass
kg
0.8
Dimension
mm
170 x94 x 26.5(Without Connectors)
RF
Connector
-
MCX Female : RF Input
N Female : RF Output
DC
Connector
-
Power Line, Male : Supply
Cooling
External Heat-sink Required
DC INTERFACE CONNECTOR – [Hybrid D-Sub 6-Pin, Male]
|
Pin# |
Description |
Specifications |
|
1 |
A 1_28V |
+28VDC |
|
2 |
TEMP |
Analog voltage relative to Module’s Temperature@10mV/°C |
|
3 |
Enable |
3.3-5V |
|
4 |
ALC |
Automatic Level Control |
|
5 |
CURR |
Analog voltage relative to IDD@100mV per Ampere |
|
6 |
A2_GND |
Ground |
• Frequency range from 3300~3600MHz for 300M bandwidth
• Class AB GaN design
• Instantaneous wide bandwidth
• 50 Ohm Input/Output impedance
• Small size and Light weight
• High reliability and Ruggedness
• Ultra-wide digital interference source
• Comprehensive protection against over-temperature and VSWR
