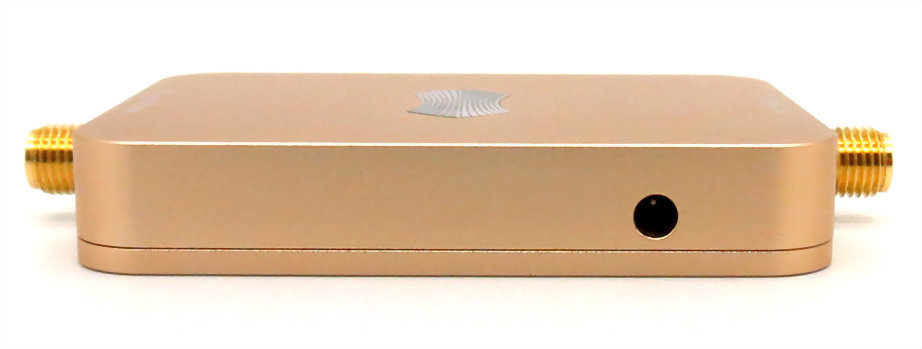

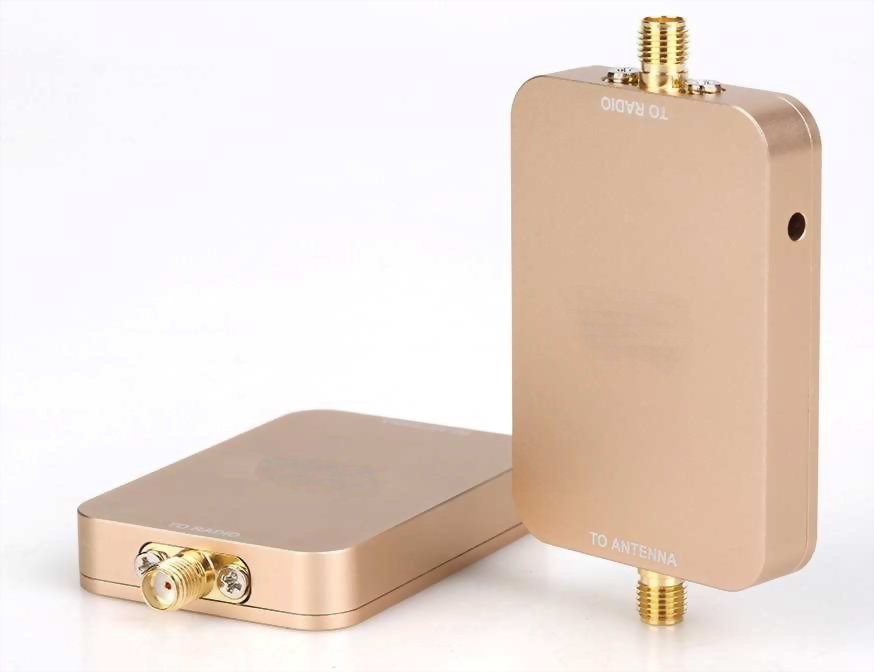

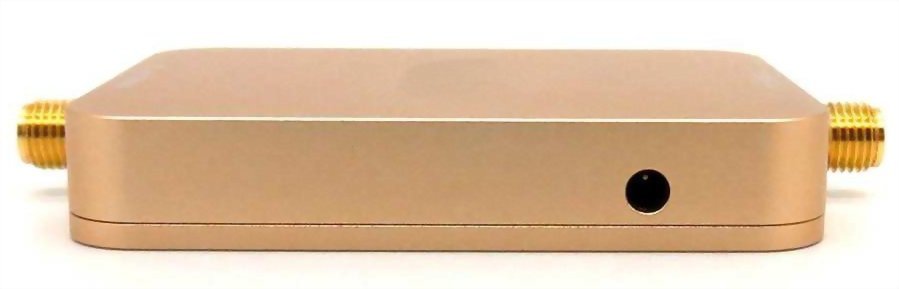

WiFi Signal Booster

Model : AAM-2430-IDU-1

APM CO.,LTD of WiFi boosters is designed for use in mobile and/or mesh wireless networking applications. Designed for bi-directional signal amplification, In contrast, traditional analog amplifier technologies can go into saturation or reduce transmit power as input signal fluctuates, negatively impacting signal quality and network performance. Can be used any 2,4GHz antenna that implements an SMA-Male connector. The small footprint and low profile design makes it an ideal solution for mounting on vehicles or in other space constrained applications.

The AAM-2430-IDU efficiently increases signal reach of any antenna by up to 200%-400%.

The AAM-2430-IDU are been used to increase the power and/or the signal for different products and aplications like:

- Routers

- Access points

- IP cameras

- Walkie talkies

- R/C helicopters, planes and cars

- Smart home systems

- Hot Spot solutions

- Hospitals

- Hotels

- Supermarkets

Operating range : 2400~2500MHz

Channel width: 20Mhz&40Mhz

Supported standards: IEEE 802.11b/g/n

Operation mode: Bi-directional, half-duplex, time division duplex

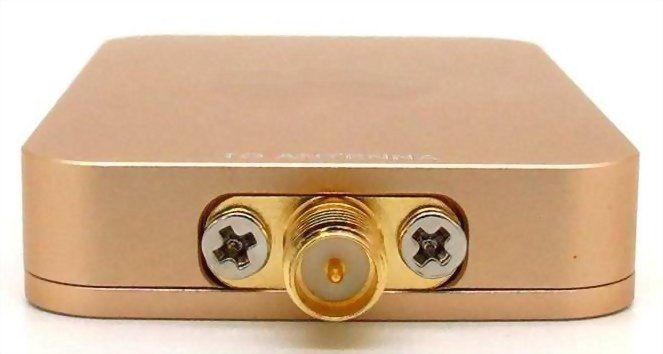

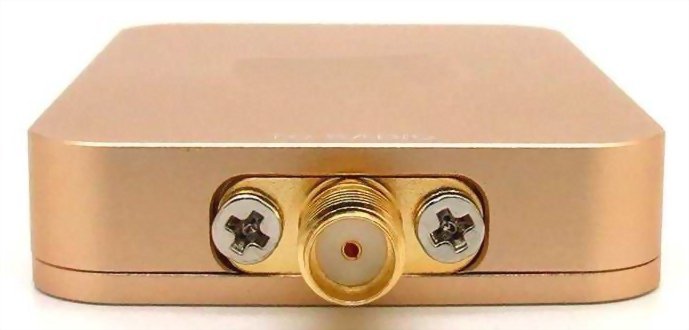

Connector type: SMA

Output power: 3000mW (35dBm)

Input power: 0 ~ 20dBm

Transmit gain: 15 – 18dB

Receiver gain: ≤ 12 dB

Noise figure: ≤3.5dB typical

Supported voltages: 5V~16V/2A DC

Material: Cast aluminum

Booster weight: 46g

Booster size: 7.3 x 4 x 1cm

Package weight: 180g

Package size: 110 x 80 x 46cm

Package contents:

1 x AAM-2430-IDU-1

1 x RG141 20cm cable SMA male to RP-SMA male

1 x 1.13mm(D) 30cm cable IPEX to SMA male

1 x DC 2.5” to 12V 5.5” adapter

1 x DC 2.5” to USB adapter

1 x DC 2.5” to JST adapter

1 x Mounting Velcro

1 x User manual
