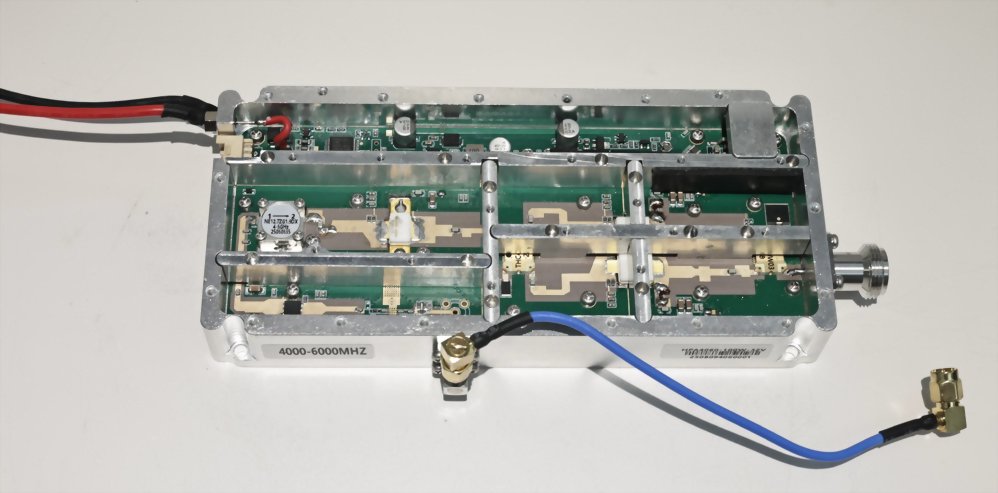

RF Power Amplifier Module
Output Power: 100W
Mechanical Specifications
• Package Type: Metal module
• Cooling Method: Bottom-mounted heat sink
• Connector Type: N or customizable RF connector
• Cooling Requirement: Forced air cooling or conductive heat sink
• Mounting Method: Screw-fixed installation
Item
Specification
Unit
Remarks
Frequency
Range
4000–6000
MHz
Working
voltage
32
V
28-32
Maximum
output power
100
W
100W@10.2A Typical Value
Power
amplifier efficiency
31
%
@100W
Maximum
gain
55
dB
Maximum
power gain
Gain
flatness
≤5
dB
Standard
input power
5
dBm
Maximum
non -damaged power
≤10
dBm
Output Port
VSWR
≤2
No power, network score test
High and low temperature test
working
environment temperature
-10～+55℃
℃
Power
stability
±1.0@-40℃～
+55℃
dB
Power supply requirements
≥13.5A@+32V DC
Continuous
wave output 100W
Power
supply interface
Feedthrough
Capacitor
Control
communication interface
485
communication protocol
TTL communication
Support
temperature,current, voltage detection,radio frequency output power detection
2.54mm 2*4 seats
TTL
communication can communicate with the digital source, set the digital source
frequency band and output power
RF output
connector
Input
SMA Output N-Female
Size
170*77*24.5
mm
Weight
750
g
Installation
hole
152.3*71.5
mm
M3.0*4
Performance Parameters
• Wide frequency coverage
• High output power
• GaN technology: high efficiency, high temperature tolerance, high voltage resistance
• Built-in temperature control and SWR protection
• High linearity and low distortion
