Custom design:

• Waterproof structure
• PTZ Controlling function
• Tripod or antenna mounting design
• Customize Color

Specifications:

• Model: WI-42-UBR-25
• Waveguide: WR-42
• Frequency: 18 to 26.5GHz
• Gain: 25 dbi
• Max Power (W): 500W
• H-plane (-3db): 20 deg
• E-plane (-3db): 19 deg
• Size (mm): 86x105x268
• Weight (g): 220
• Waveguide Flange: UG-419/U
• V.S.W.R: 1.3
• Material: Aluminum

• Meet international standards
• Good appearance design

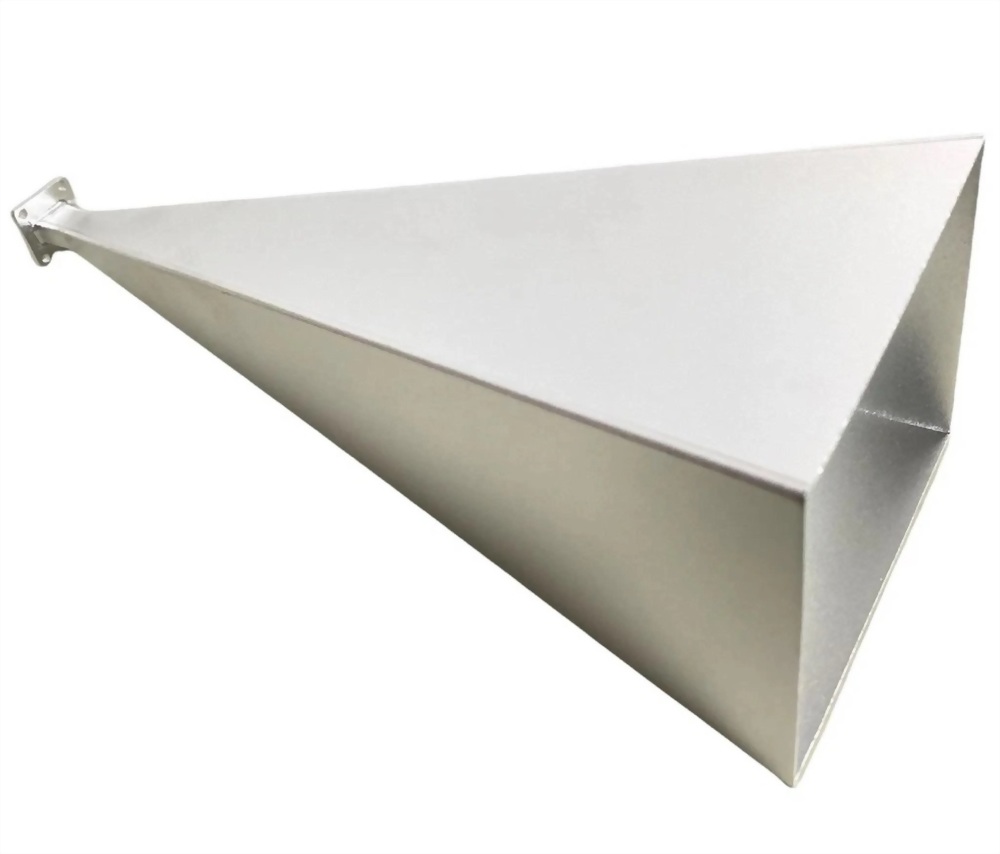

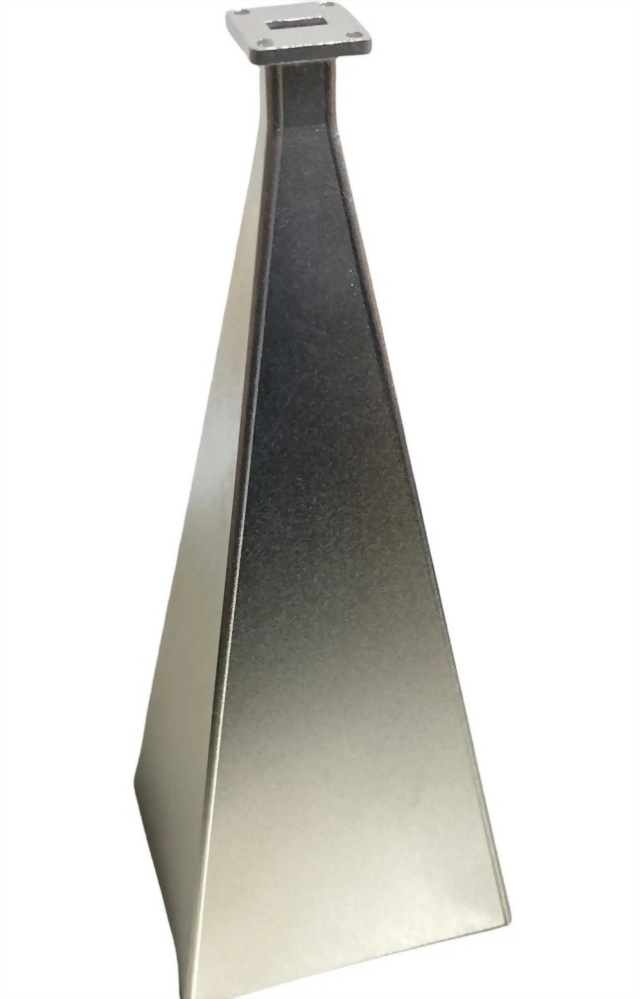

• WR42 Waveguide Horn Antenna without Adapter, UBR UG-419/U Flange, 18 GHz to 26.5 GHz 25dBi
• EMI/EMC testing
• Antenna gain measurements.
