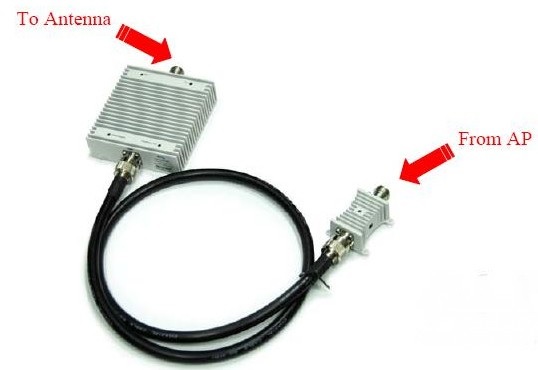

2Watt Outdoor Booster

Model : AAM-2420b/g-ODU-1

The AAM-2420B/G-ODU-1 Outdoor Booster is a highly efficient and industrial quality designed to increase the performance and range of any 2.4 GHz wireless device.

This includes Bluetooth, P2P, P2MP,

802.11b, 802.11b+, 802.11g, and 802.11b+g access points and wireless routers.

The AAM-2420B/G-ODU-1 amplifies the signal of any 802.11b/g device for up to 2Watt in power. That means your AP or Wireless Router can easily reach over 20~40 kilometers point to point with an High Gain antenna in the open space.


Frequency Band

2.4GHz ~ 2.5GHz

Signal Type

OFDM&DSSS

TR Switch Time

< 1µsec

Rx. Max Input Power

-10 dBm

Rx Power Gain

20dB max

Tx Input Power

5~20dBm

Tx Linear Output Power

1W @ 11g

2W @ 11b

DC Supply Voltage

DC 12V / 1A

RF Connector Type

N Female

Operating Temperature

-10 ~ +40 °C

Storage Temperature

-40 ~ +90 °C

Features:

˙High Switching Speed Power Gain Controller

˙High Gain and Low Noise

˙Powered through DC Power Injector

˙Low Power Consumption

˙Low Heat Generation

˙Light Weight

Applications

˙WLAN 802.11b, 802.11b+

˙WLAN 802.11g

˙Bluetooth

˙Digital Spread Spectrum on the ISM Band

Absolute Maximum Ratings

˙Supply Voltage   15.0 V

˙Rx Input Power   -10 dBm

˙Tx Input Power   +23 dBm

˙Operating Temperature -10 ~ +50 °C

˙Storage Temperature  -40 ~ +90 °C
