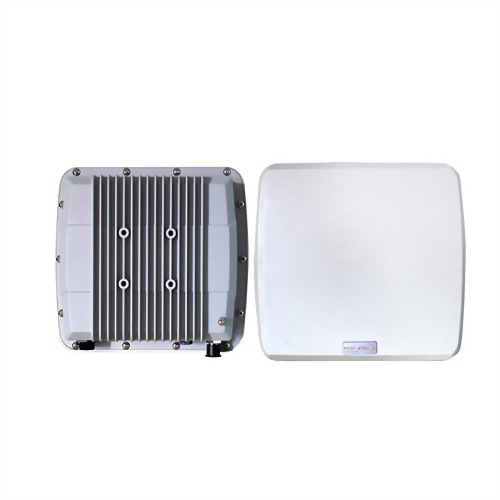

802.11an Outdoor AP/CPE
Specifications
|
Chipset |
AR9344 |
|
Standard |
IEEE 802.11an |
|
Frequency |
5.15GHz ~ 5.825GHz |
|
Flash/SDRAM |
16/ 64 MB |
|
Antenna |
Build-in 10dBi directional antenna |
|
Channel Width |
20/ 40 MHz * Will support 5/10 MHz in the future* |
|
Data Rate |
802.11a: up to 54Mbps 802.11an: up to 300Mbps |
|
LED Indicated |
Signal, WAN, LAN, WLAN |
|
Operation Temperature |
-30°C ~ 60°C |
|
Storage Humidity |
10% ~ 90% (Non-condensing) |
|
Dimension(mm) |
300 x 80 x 30 mm |
|
Weight |
0.4kg |
Software features
|
Mode |
AP Bridge Client Bridge WDS Bridge |
|
Security |
WEP WPA/WAP2-PSK WPA/WPA2-Enterprise 802.1x |
•High Speed Data Rates 802.11an 300Mbps
•Open Source Compatible OpenWrt/LEDE supported
•Hardware watchdog Ensure operating properly
•Weather-Proof design IP rated IP55
•ESD Protection Enhanced ESD protection on both LAN and RF
