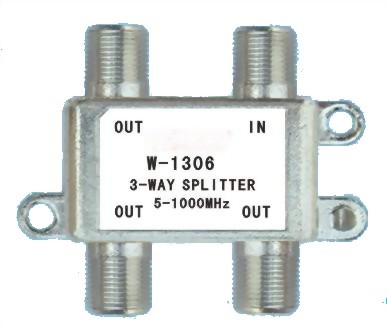

5~1000MHz CATV SPLITTERS
Model :
W-1306
Specification:
|
Item
|
Frequency Range (MHz)
|
W-1306
|
|
Insertion Loss(IN-OUT)(dB)
|
5-40
|
≤6.0
|
|
40-550
|
≤6.0
|
|
|
550-750
|
≤6.5
|
|
|
750-860
|
≤6.8
|
|
|
860-1000
|
≤6.8
|
|
|
Isolation Loss(OUT-OUT)(dB)
|
5-40
|
≥25
|
|
40-550
|
≥28
|
|
|
550-750
|
≥25
|
|
|
750-860
|
≥23
|
|
|
860-1000
|
≥23
|
|
|
Return Loss (IN/OUT)(dB)
|
5-40
|
≥20
|
|
40-550
|
≥20
|
|
|
550-750
|
≥18
|
|
|
750-860
|
≥18
|
|
|
860-1000
|
≥18
|
Features:
- Low insertion loss, high return loss and isolation.
- RF shielded Zinc die cast housing with Tin plated and solder shield bottom sheet metal plate.
- Two pieces of screws attached.
- Particularly design for easy and convenient installation .
- All ports F-(f) connector, 75Ω .
- Grounding terminal provided.
-
Screening factor:
30-300MHz≥85dB
300-470MHz≥80dB
470-1000MHz≥75dB
