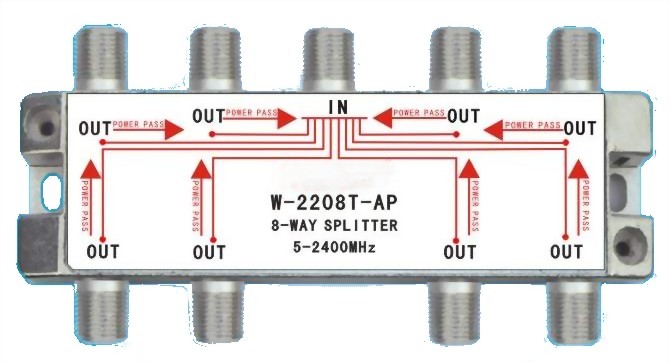

5~2400MHz SMATV 8-WAY SPLITTER

Model : W-2208T-AP/P

Item
Frequency (MHz)
W-2208T-AP/P
Insertion Loss (dB)    IN-OUT
5-40
≤4.5
40-1000
≤5.0
1000-1750
≤6.0
1750-2050
≤6.5
2050-2400
≤7.0
Mutual Isolation (dB)  OUT-OUT
5-40
≥18
40-1000
≥19
1000-1750
≥19
1750-2050
≥20
2050-2400
≥18
Return Loss (dB)  IN/OUT
5-40
≥10
40-1000
≥10
1000-1750
≥9
1750-2050
≥9
2050-2400
≥9

Features:

  • RF shielded Zinc die cast housing, nickel-plated.
  • Low insertion loss,high return loss and isolation for CATV, satellite TV & MMDS.
  • All ports F-(f) connector,75Ω.
  • Grounding terminal provided.
  • -AP: Single directional DC pass from all output ports to input port:max. 1A, 30V
  • Two pieces of screws attached.
  • Light weight and compact size
  • Screening factor: Class A.
