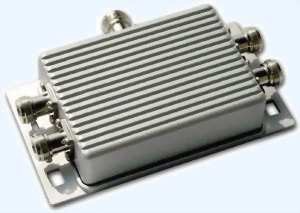

2.4 GHz Antenna Splitter

Model : ASP-244

ASP-244 is a four-port antenna splitter that enables you to operate one radio with four antennas.
It is optimized for maximum performance in the 2.4 GHz band. No power supply is required for operation of this splitter.

Features

  • Waterproof enclosure
  • Works equally well for both transmit and receive signals
  • Standard N-female connectors
  • Includes pole mounting hardware
  • Works with both FHSS and DSSS radio signals
  • Covers the entire 2.4 GHz band
  • Only 0.7 dB insertion loss over the theoretical 6dB loss found in 4 port splitters
  • VSWR < 1.5:1
  • Supports up to 125 Watt transmitter power
  • Suitable for Omni or directional antennas or a combination thereof
  • Provides isolation between the output ports
  • Will not cause interference-producing intermodulation
