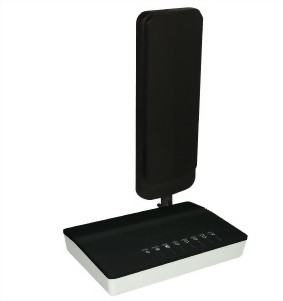

802.11b/g/n 800mW Access Point+Router
Model :
AAP-I2408M
Specifications
| Standard | IEEE 802.11b/g/n |
| Wireless Mode | AP |
| Client | |
| WDS | |
| AP+WDS | |
| Operation Mode | Gateway |
| Bridge | |
| Wireless ISP | |
| Frequency Band | 2.400GHz ~ 2.484GHz |
| Data Rate | 802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back |
| 802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps | |
| 802.11n(20MHz): up to 72Mbps | |
| 802.11n(40MHz): up to 150Mbps | |
| Access Protocol | CSMA/CA |
| Security | 64/128bit WEP |
| WPA(TKIP with IEEE 802.1x) | |
| WPA2(AES with IEEE 802.1x) | |
| WPA Mixed | |
| Sensitivity | -93dBm @ 802.11b |
| -91dBm @ 802.11g | |
| -89dBm @ 802.11n | |
| RF Output Power(Typical) | 802.11b: up to 17 ± 1 dBm |
| 802.11g: up to 15 ± 1 dBm | |
| 802.11n: up to 14 ± 1 dBm | |
| Antenna | One 12dBi Omni-antenna |
| Dimension(mm) | 146(L) x 100(W) x 24(H) |
| Operation Temperature | -20°C ~ 70°C ambient temperature |
| Storage Humidity | 10% ~ 90% (Non-condensing) |
| Connector | One antenna connector |
| One RJ-45 WAN port | |
| Four RJ-45 LAN ports | |
| Reset to default button | |
| WPS button | |
| Power jack | |
| Power requirement | 12V DC |
Features
- Support advanced 1 x 1 Technology with up to 150Mbps downstream and upstream
- Complies with 2.4GHz IEEE802.11n and IEEE802.11b/g standards
- Low Noise Amplifier(LNA) support
- Support 20MHz and 40 MHz bandwidth
- Operation mode: Gateway, Bridge, Wireless ISP
- Wireless mode: AP, Client, WDS, AP+WDS
- DHCP Server/Client
- RF output power adjustable
- Virtual DMZ, Port Forwarding
- Dynamic DNS
- TCP/UDP/ICMP/ARP protocol stack
- Firewall, URL/IP/Port/MAC filtering
- Wireless users access control
- Multiple SSID
- NTP client
- Wireless security-64/128bit WEP, WPA TKIP, WPA2 AES, 802.1x
- Support PPPoE, VPN pass-through(PPTP and L2TP)
- QoS enhancement-WMM
- WPS(Wi-Fi Protected Setup) via PIN
- Easy quick setup wizard with web-based utility
- One detachable antenna
