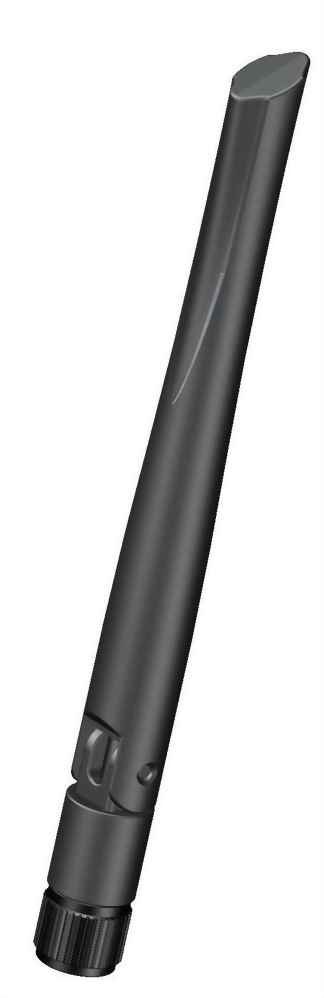

Dual Band 2.4GHz/5.1GHz
|
1. Specification
A. Electrical Characteristics |
|
Frequency |
2400 ~ 2500 MHz 5150 ~ 5850 MHz |
S.W.R. |
<= 2.0 @ 2400 ~ 2500 MHz <= 2.5 @ 5150 ~ 5850 MHz
The data is tested with |
Antenna Gain |
2.0±0.7dBi @ 2400 ~ 2500 MHz 2.5±0.7dBi @ 5150 ~ 5850 MHz |
Radiation Pattern |
Omni-Directional |
Max Input Power |
>= 2 W |
Polarization |
Linear |
Impedance |
50 Ohm |
B. Material & Mechanical Characteristics |
|
Material of Radiator |
CU |
Material of Plastic |
ABS |
Cable Type |
RG178 |
Connector Type |
SMA Male Reverse |
C. Environmental |
|
Operation Temperature |
- 40 ˚C ~ + 65 ˚C |
Storage Temperature |
- 40 ˚C ~ + 80 ˚C |
Antenna Color Storage life |
< 2 year |
1. Characteristics and Reliability Test
Test Items測試項目 |
Test Condition and Procedure測試方法 |
Requirements要求 |
Result 結果 |
|
C1 |
V.S.W.R. 電壓駐波比 |
Set DUT on Network Analyzer; make individual calibration to test 設置網路分析儀參數進行測試 |
Directive DUT specification 符合待測物規範 |
OK |
C2 |
Insertion Loss插入損失 |
Set DUT on Network Analyzer; make individual calibration to test 設置網路分析儀參數進行測試 |
Directive DUT specification 符合待測物規範 |
N/A |
C3 |
Antenna Gain 天線增益 |
Set DUT on Antenna Chamber; make individual calibration to test 設置天線暗室參數進行測試 |
Directive DUT specification 符合待測物規範 |
OK |
C4 |
Voltage Breakdown 耐電壓 |
Test voltage should be applied between insulated portions, or between ground as specified. 在绝缘部分测试电压,或指定接地面之间 |
Max Voltage≥ 500 V or directive material specification最大電壓≥500V或符合材料規範 |
N/A |
C5 |
Insulation Resistance 絕緣阻抗 |
Set Voltage: 500 ± 50V; between the insulated portions, or between ground as specified. 設置電壓500 ± 50V,在绝缘部份測試或指定接地面之间 |
Resistance≥500 M ohm or directive material specification阻抗≥500M ohm或符合材料規範 |
N/A |
C6 |
Contact Resistance接觸阻抗 |
Air Temp:26°C; measured with test equipment 室溫26°C,指定量測設備 |
Directive material specification 符合材料規範 |
N/A |
M1 |
Vibration 震動 |
GB / T2423.48-2008 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz 3 directions; 2 hours for each direction 振幅1.5mm;頻率20~80~20Hz;3個方向各2H |
1. No Visual Damage 2. Frequency Tol.≤5% 無明顯外觀不良;頻率偏移≤5% |
OK |
M2 |
Random Drop 跌落 |
GB / T2423.8-1995 Single:Height: 1.0 Meter; 3 directions; 1 time for each direction單支天線,高1m;3個方向各1次 |
1. No parts separated、fracture 2. Frequency Tol.≤5% 產品無脫落、斷裂;頻率偏移≤5% |
OK |
Packing:Height: 0.76 Meter; 1 corner, 3 edges, 6 surface 包裝:高0.76m,一角、三棱、六面各一次 |
OK |
|||
Antenna+Machine:Height: 0.76 Meter; 1 corner, 3 edges, 6 surface.整機:高0.76m,一角、三棱、六面各一次 |
N/A |
|||
M3 |
Solderability 可焊性 |
GB / T2423.28-2005 Temp: 260±5°C;Duration: 5 seconds 溫度260±5°C;持續5秒 |
Tin evenly on full 上錫均勻飽滿 |
N/A |
M4 |
Pull Test 拉力 |
Holding with individual specification; force applied to axis of terminal .單獨定義產品端子拉力 |
1. Directive DUT specification 2. Frequency Tol.≤5% 符合待測物規範;頻率偏移≤5% |
OK |
M5 |
Torque Test 扭力 |
Holding with individual specification; applied clockwise and counterclockwise to the axis of terminal 單獨定義產品端子之順時針及逆時針扭力 |
1. Directive DUT specification 2. Frequency Tol.≤ 5% 符合待測物規範;頻率偏移≤5% |
N/A |
M6 |
Dimension 尺寸 |
Inspection of dimension, color, material, package, surface process.检查尺寸,颜色,材料,包装,表面處理 |
Directive DUT specification 符合待測物規範 |
OK |
E1 |
Waterproof 防水 |
With Reference to IEC 60529 // IP Code Definition 參考IEC60529 IP定義 |
Directive DUT specification 符合待測物規範 |
N/A |
E2 |
Salt Spray鹽霧 |
GB / T 2423.17-2008 Temp:35°C; RH: ≥ 95%; NaCl solution: ≥ 5%;Time: 24H 溫度35°C;濕度≥95%;鹽水濃度≥5%;測試24H |
1. No Visual Damage 2. Frequency Tol.≤5% 無明顯外觀不良;頻率偏移≤5% |
N/A |
E3 |
Temperature and Humidity Chamber 恒溫恒濕 |
GB / T 2423.3-2006 Temp:80°C/ 12 H;-40°C/ 12H RH: ≥ 90%; Time: 24H 溫度80°C測試12H轉-40°C測試12H;濕度≥ 90%;時間24H |
After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.≤5% 恢復2H后,無明顯外觀不良;頻率偏移≤5% |
OK |
E4 |
Thermal Shock 冷熱衝擊 |
GB / T 2423.22 - 2008 -40°C(30 minutes) to +80°C(30 minutes);Cycles: 24 -40°C測試30分轉80°C測試30分為一個週期;共24週期 |
After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.≤5% 恢復2H后,無明顯外觀不良;頻率偏移≤5% |
OK |
E5 |
Aging test 老化 |
GB /T 2423.2 - 2008 Temp:80°C; Time: 24 hours 溫度80°C,測試24H |
After 2 Hours Recovery 1. No Visual Damage 2. Frequency Tol.≤5% 無明顯外觀不良;頻率偏移≤5% |
OK |
E6 |
High Temp.高溫 |
Temp. 270±10°C;Times:120 seconds 溫度 270±10°C,測試時間120秒 |
No Visual Damage 無明顯外觀不良 |
N/A |
R1 |
RoHS |
With Reference to IEC 62321:2008 with flow chart 參考IEC 62321測試流程 |
Directive RoHS 2011/65/EU 符合RoHS 2011/65/EU標準 |
OK |
R2 |
PFOS |
With Reference toUSAEPA3550C:1996 by LC/MS 參考USA EPA3550C測試流程 |
Directive RoHS 2006/122/EC 符合RoHS 2011/65/EU標準 |
OK |
Antenna - S Parameter Test Data
Antenna - Radiation Pattern Test Data
2400 MHz |
2450 MHz |
2500 MHz |
|
|
|
5150 MHz |
5550 MHz |
5850 MHz |
|
|
|
