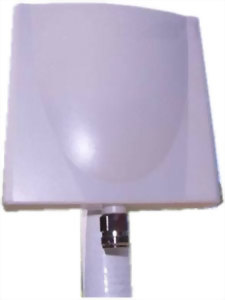

Panel Directional Outdoor/Indoor Antenna,WiFi 2400-2500/4900-5875MHz, 13/15dBi Gain
Model :
APG-251416
Electrical Datasheet
Frequency Range | 2400-2500/4900-5875MHz |
VSWR | <1.5:1 Max |
Gain | 13/15 dBi |
Polarization | Vertical or Horizontal |
Azimuth BW | Horizontal 58°/2.4G, 45°/5GHz |
Elevation BW | Vertical 55°/2.4G, 45°/5GHz |
Front to Back Ratio | NA |
Impedance | 50 Ohms |
Connector | N-female |
Mechanical Datasheet
Dimensions | 7.8*7.8*2.1 in/ 200*200*53 mm |
Weight | 0.88 lb/ 400g |
Mounting | Wall/mast mount kit |
Color | Light gray |
Temperature | -40 to +80°C |
Accessories | Mounting kits, manual |
Wind Load | 216KM/hr |
Temperature | -40 to +80° C |
Humidity | 95%@55° |
Material | ABS/UV |
Warranty | 1 Year |
