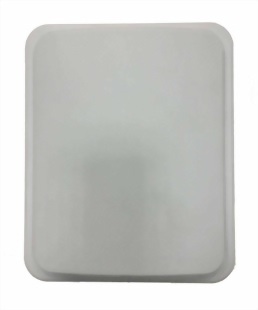

2.4 / 5.8GHz 8dBi Dual Band Panel- Directional Outdoor Antenna
APG-24580808 can be used for IEEE 802.11a,802.11b/g, 802.11n wireless LAN, Bluetooth, public wireless hotspot and other coverage of point-to-multipoint applications.
APG-24580808’s connector is N-Female and can be directly mounted on the wall vertically or horizontally polarization. Or installed with a degree tilt mounting kit on other supports.
The internal is designed on FR4 (PCB) with ABS casing and aluminum body for the base. Fully weather proof and UV resistant.
Electrical Specifications
|
Frequency Range |
2400MHz / 5800MHz |
|
V.S.W.R (MAX) |
2.0 :1 |
|
Antenna Type |
Patch Type |
|
Radiation |
Directional |
|
Gain (MAX) |
8 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
50 Watts |
|
Vertical Beam-width |
2.4GHz :73Deg 5.8GHz : 79Deg |
|
Horizontal Beam-width |
2.4GHz : 53Deg 5.8GHz : 46Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Patch Array |
|
Internal Material |
Rogers PTFE(PCB) |
|
Connector |
N-Female |
Mechanical Specifications
|
Length x Width (MAX) |
180 x 150 mm |
|
Diameter (MAX) |
25mm |
|
Antenna Weight (G.W) |
220 g |
|
Accessories (G.W) |
200 g |
|
Application |
Indoor / Outdoor |
|
Radom Material |
White ABS+UV |
|
Parts Material |
Aluminum |
|
Mount Style |
Pole Mount |
|
Mounting |
Stainless Steel and Aluminum |
|
Wind Survival |
Greater than 150MPH |
|
Storage Temperature |
-40 to +80 |
|
Operating Temperature |
-40 to +60 |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
5%~90% non-condensing |
|
Safety,Emission and other |
RoHS |
•Superior performance
•Light weight
•All weather operation
•DC Short lightning protection
•Installed for vertical
•Includes tilt and swivel mast mount
•In accordance with customer needs to change the color or features
•2.4/5.8 GHz Band
•IEEE 802.11a,802.11a/b, 802.11g, 802.11n Wireless LAN
•Directional and multipoint applications
•Bluetooth
•Public Wireless Hotspot
•WiFi, RFID
