• AGPS-254

AGPS-254

Model : GPS Dielectric Antenna




◎Dielectric Antenna

Center Frequency (MHz):1575.42±3

VSWR:1.5:1

Bandwidth (MHz):15 Min

Impedance (Ω):50

Peak Gain >4dBi Based on 7cm×7cm ground plane

Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)

Polarization:RHCP

Power Handling (W):1

◎Mechanical

Weight (gram)<10

Size (mm):25×25×4

◎Environmental

Working Temp:-40℃~+85℃

Storage Temp:-45℃~+90℃

Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity:Humidity95%~100%RH

Mechanical (Pin:1.8mm)




˙Characteristic curve

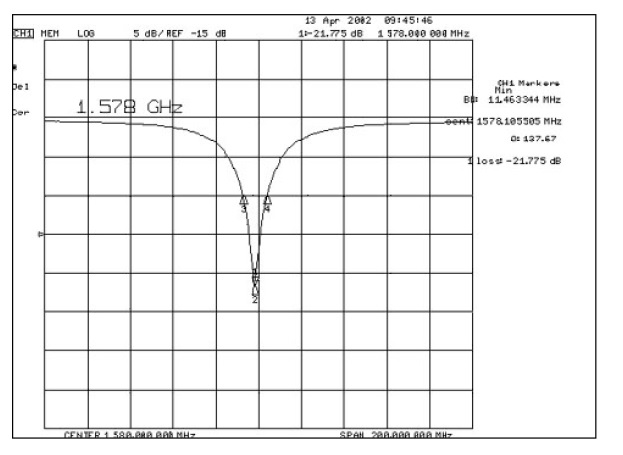

(For Example:1578MHz)

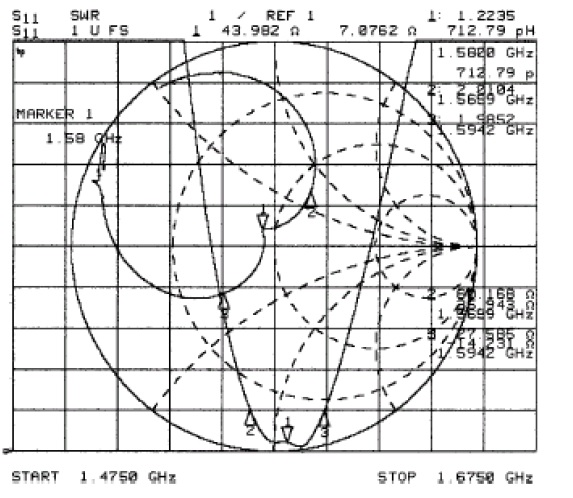

(For Example:1580MHz)
