High Gain Directional Panel Antenna for 2.4GHz &n 5GHz
Model :
APG-I250608B
| Electrical Specification | |
| Frequency Range: | 2.4~2.5 ; 4.9~5.85 (GHz) |
| Peak Gain*: | 6 ; 8 (dBi) |
| VSWR: | 1.92 : 1 max |

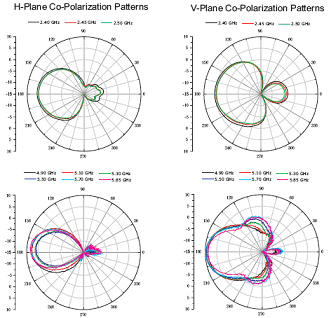

| HPBW /H: | 100°; 55° |
| HPBW /V: | 67°; 40° |
| Impedance: | 50 Ω |
| Polarization: | Linear ; Vertical |
| Power Handling: | 1W |
| Connector: | RP SMA Plug |
| Cable: | GDC-101 (Gray) ; L :1m |
| Mechanical Specification | |
| Operating Temperature: | -10° C~60° C |
| Storage Temperature: | -10° C~70° C |
| Humidity: | 95% RH |
| Radome Material: | ABS+PC |
| Color: | Silver ; Black |

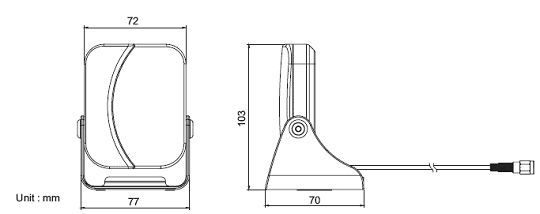

| Dimensions: | 70L x 77W x 103H |
| Weight: | 200 gfw |
| Mounting Function: |
Weight Stand. Wall Mount. Magnet Mount. |
