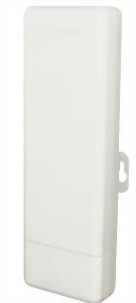

Outdoor 5GHz Wireless AP Router

Model : AAP-5003-P16

Specification

Wireless LAN Standard IEEE 802.11a
IEEE 802.11n
Frequency Band 4.900GHz~5.850GHz
Data Rate 802.11a: up to 54Mbps
802.11n(20MHz): up to 72Mbps
802.11n(40MHz): up to 150Mbps
Operation Mode Bridge
Gateway
Ethernet Converter
Sensitivity -90dBm @ 802.11a
-88dBm @ 802.11n
Output Power(Typical) 802.11a: up to 25 ± 1 dBm
802.11n: up to 22 ± 1 dBm
Wireless Mode AP
Client
WDS
Antenna Type Internal: 16 dBi Directional Antenna
External (option): SMA connector
Security 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
Media Access Control CSMA/CA
Storage Humidity 10% ~ 90% (Non-condensing)
Operation Temperature Operation: -20°C ~ 70°C
Connector One RJ-45 port for LAN
One RJ-45 port for WAN
Reset to default button on PoE injector
Power requirement DC12V/1A
Number of operation channel 5.18GHz-CH36
5.200GHz-CH40
5.220GHz-CH44
5.240GHz-CH48
5.260GHz-CH52
5.280GHz-CH56
5.300GHz-CH60
5.320GHz-CH64
5.500GHz-CH100
5.520GHz-CH104
5.540GHz-CH108
5.560GHz-CH112
5.580GHz-CH116
5.600GHz-CH120
5.620GHz-CH124
5.640GHz-CH128
5.660GHz-CH132
5.680GHz-CH136
5.700GHz-CH140
5.745GHz-CH149
5.765GHz-CH153
5.785GHz-CH157
5.805GHz-CH161
5.825GHz-CH165

Features

  • Complies with 5GHz IEEE802.11a and IEEE802.11n standard
  • Low Noise Amplifier(LNA) support
  • Operation mode: Bridge, Gateway, Ethernet Converter
  • Wireless mode: AP, Client, WDS
  • DHCP Server/Client
  • Virtual DMZ, Port Forwarding
  • Firewall, IP/Port/MAC filtering
  • URL filtering
  • Wireless users access control
  • Wireless security - 64/128bit WEP, WPA TKIP, WPA2 AES, 802.1x
  • Support DHCP client, static IP, PPPoE, PPTP and L2TP for WAN connection
  • Software WPS function
  • Support Power over Ethernet (PoE passive)
  • Reset button on PoE injector
  • Support external antenna selection- (option)
