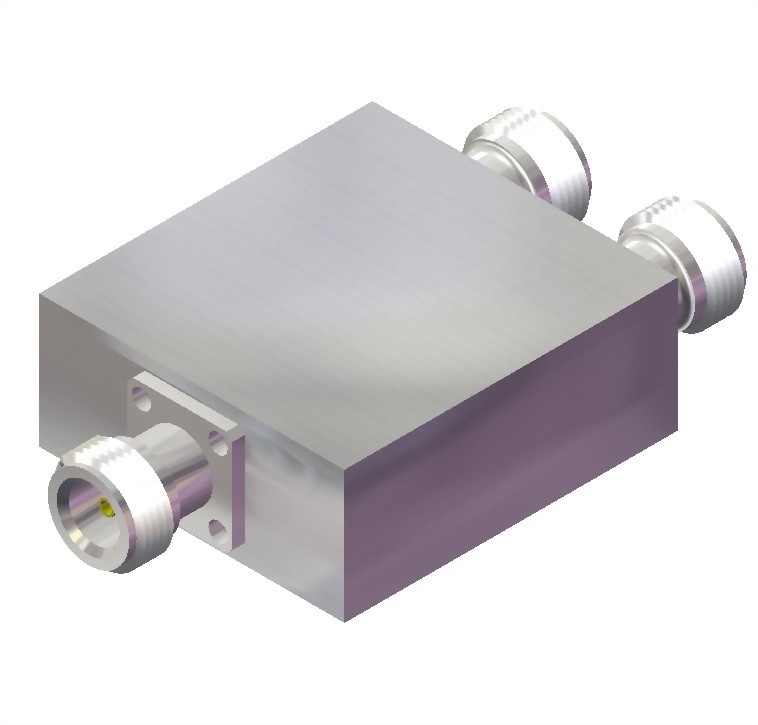

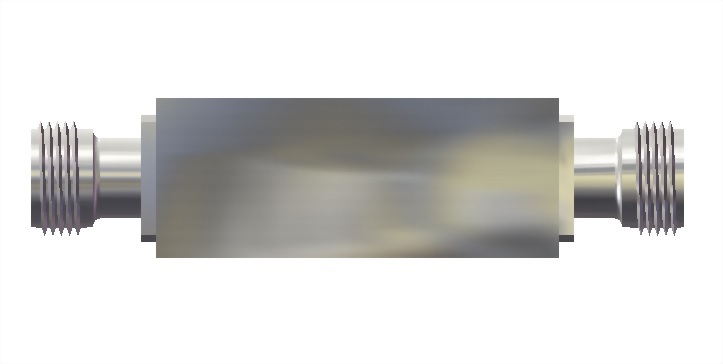

100~6000MHz 2-WAY POWER DIVIDER

Model : ASP-016002


Electrical Specifications:

Frequency Range :

100~ 6000 MHz

Insertion loss

≤ 2.0 dB

Impedance

50Ω ± 5Ω

VSWR

≤ 2.0

Isolation

20 dB

Power Handling

50 watts

Phase unbalance

±10 degrees max

Mechanical Specifications

Connector

N Female

Operation Temp

-30 ~ +60

Material

aluminum

Dimension (L*W*H) :

89.6*50.7*22mm

Weight

160g





2.TESTING CONDITION

2.1 TEST SETUP

VSWR measurement (S11): Use ROHDE & SCHWARZ ZV8 Network Analyzer with

Harbour RG-142 coaxial cable: 1000mm length in free space.







2.1.1 VSWR

The table as below summarizes concern about Return loss measurement according to The frequency band is based on FWS design.  The detail be shown as appendix that is from ROHDE & SCHWARZ ZV8 Network Analyzer



VSWR Performance

Freq(MHz)

1000

2000

3000

4000

5000

6000

Free space

1.67

1.71

1.25

1.37

1.07

2.18





















































2.1.2 INSERTION LOSS MEASUREMENT

The insertion loss of the power divider was measured by ROHDE & SCHWARZ ZV8

Network Analyzer. The way to measured insertion loss is connect input and output port. The other ports mount with 50 ohm matches respectively.  The table as below compared with S12 and S13 insertion loss measurement according to The frequency band is based on FWS design. The table as below have already reduced 3 dB of measurement



       Insertion loss Performance

Freq(MHz)

1000

2000

3000

4000

5000

6000

Insertion(S21) dB

-3.3

-3.8

-6.0

-4.4

-5.3

-6.3

Freq(MHz)

1000

2000

3000

4000

5000

6000

Insertion(S31) dB

-3.7

-3.9

-4.7

-4.3

-5.4

-7.7
