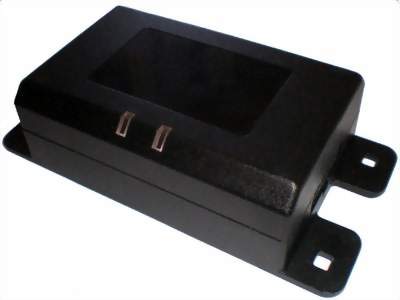

Motorcycle GPS 2G 900/1800MHz tracker

Model : VT-09-V2

Specifications:

SIZE (L/W/H):    85 x 35 x 20 mm

POWER SUPPLY: DC 9V ~ DC 16V

POWER CONSUMPTION @12V DC :

- 5mA ~ 8 mA Power Save Mode

- 20mA ~ 25mA Standby Mode

- 30mA ~ 40mA operating (SMS)

- 50mA ~ 180mA operating [Peak : 180mA] (GPRS online)

OPERATING TEMPERATURE: -40°C ~ +85°C

GSM/ GPS MODULE :

GSM Module : Telit GL865 ( Dual Band )

Operating Frequency:

˙EGSM 900 / 1800 MHz

˙ Output Power :

-. Class 4 ( 2W ) @ 900 MHz

-. Class 1 ( 1W ) @1800 MHz

˙ Sensitivity :

-. 108 dBm(typ.) @ 900 MHz

-. 107 dBm(typ.) @ 1800 MHz

GPRS :

˙ GPRS Class 10

GPS Module : Telit SE868K7-A

GPS Sensitivity: > -164 dBm ( Tracking )

w/ AGPS function

Protocol: NMEA-0183

Build in RF Front end , LNA , SAW Filter

GPS ANTENNA :

Frequency band: 1575.42 ± 3 Mhz

Antenna Size : 9mm x 9mm x 4mm

Output Impedance: 50Ω
