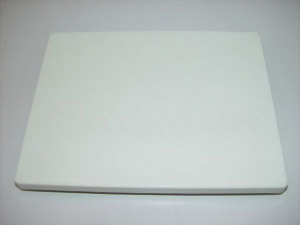

Panel Directional Dual Band Antenna for 802.11abg
Model :
APG-251215
| Electrical Specification | |
| Frequency Range: | 2.4~2.5 / 5.1~5.9 GHz |
| Part Number | APG-251215 |
| Polarizatin | Linear |
| V.S.W.R. | 1 : 1.5 Max |
| Impedance | 50 OHMS ± 5Ω |
| Gain | 12 / 15 dBi |
| Power handling | 20W Max |
| Front to back ratio | 25 dB |
| HPBW / horizontal | 50° / 10° |
| HPBW / vertical | 30° / 10° |
| Mechanical Specification | |
| Connector Tyep | -N Type Female |
| Length | 270 x 205 x 15 mm |
| Weight | 310g |
| Radome color | Gray - White |
| Radome materal | PC and ABS |
